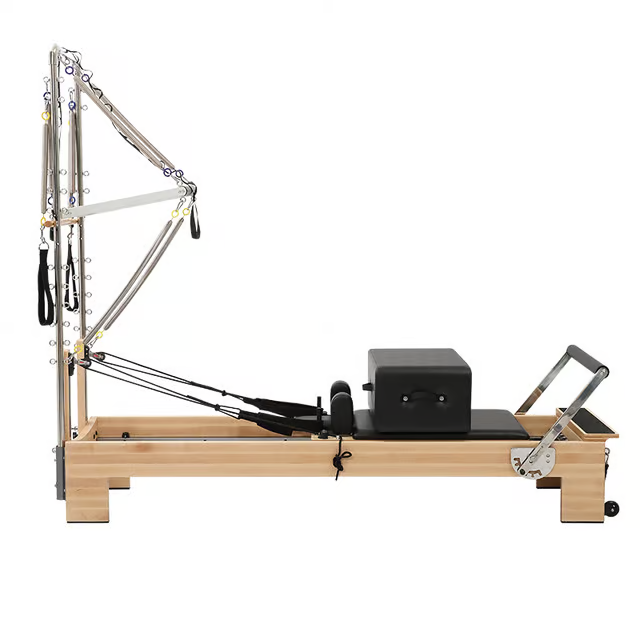

Pilates Veritas Spliced Maple Reformer With Tower (Model:106)
Veritas Spliced Maple Reformer with Tower –
Full Specifications Construction & Design
Frame Material: Spliced North American Maple (multi-layer bonded construction)
Why Spliced Maple?
Used by elite brands like Balanced Body & BASI, Unmatched dimensional stability—no warping, bending, or flexing, Perfect for studios with high footfall, humidity, or frequent reconfiguration.
Finish: Hand-polished 6x and sealed with professional-grade wood wax oil.
Build Quality: Mortise and tenon construction + stainless steel hardware.
Foot Leveling: Adjustable feet for floor contact perfection.
Dimensions & Shipping
Reformer Size: 228.5 cm (L) × 68.5 cm (W) × 39 cm (H), (90” × 27” × 15”), Tower Height: Approximately 213–217 cm depending on assembly. Net Weight: 128 kg. Gross Weight: 187kg. Shipping Box: 251.8 cm × 79.3 cm × 53.5 cm. Packaging: Plywood crate with steel framing for export safety.
Spring System
🔹 Reformer Carriage
Total Springs: 6
2 × Red – Heavy (60 lbs)
2 × Blue – Medium (26 lbs)
2 × Yellow – Light (19 lbs)
Gear bar System: 3-position adjustable. Origin: Springs imported from Japan (piano wire grade), Lifespan: 2 years or 3,000 hours (whichever comes first)
🔹 Tower Springs
Total Tower Springs: 8
2 × Long Blue – Heavy.
2 × Long Yellow – Light.
2 × Short Blue – Medium.
2 × Short Yellow – Light.
Tower Adjustability: 49-height slot system. Functionality: Arm work, leg springs, roll-down bar, push-through bar, and more.
Functional Features: Track: Aircraft-grade aluminum with anti-friction coating. Glide System: High-precision sealed bearing wheels for a silent ride. Carriage Padding: High-density foam. Upholstery: Anti-sweat, scratch-resistant microfiber leather. Headrest: 3-position adjustable. Shoulder Rests: Adjustable & removable. Foot bar: 304-grade mirror-polished stainless steel.
7 adjustable gear positions. Ropes: Climbing-grade, low-stretch, adjustable. Handles: Silent padded dual-loop handles. Pulley Risers: 3 stop positions for rope height.
Accessory Compatibility: Jump board (optional), Box & extender. Platform board. All tower accessories included.
Stability & Safety: Spliced maple = No warping in humid or portable environments. Tower Structure: 304 stainless steel, precision grid.
Safety Gear Included: Safety strap, Push-through bar lock, Rubber bumpers, Reinforced riser screws and double-lock tower bars.
Warranty: Frame & Springs: 1 year, Wear Parts (straps, pulleys, wheels): 6months, Upholstery: 90 days (defects only, excludes wear/tear)
Maintenance Recommendations: Daily: Wipe rails, check ropes/springs, Weekly: Tighten tower bolts, foot bar pins. Monthly: Inspect upholstery, adjust foot levelers. Wood Care: Dry cloth only—no moisture. Tower Spring Check: Replace if uneven recoil or stretch.
Ideal Use Cases: High-volume Pilates studios (group and private sessions), Rehab centers and physiotherapy clinics, Studios in high humidity areas, Any studio wanting a zero-maintenance, studio-grade Cadillac alternative.
Feature Luma Tower Veritas Tower
Wood Type Solid Maple (single piece) Spliced Maple (multi-piece bonded), Look & Feel Natural, unique grain Smooth, clean uniformity, Studio Performance Great for aesthetics + function Top-tier for function, stability, and longevity, Ideal For Boutique studios Heavy-use commercial environments
Why Choose Veritas Reformer?
Combines the best of a reformer and tower in a structurally indestructible frame. Perfect for instructors running daily classes across skill levels. Offers smoother, safer performance for advanced moves, jump board work, and suspension. One of the most stable tower-integrated reformers in the market today.
