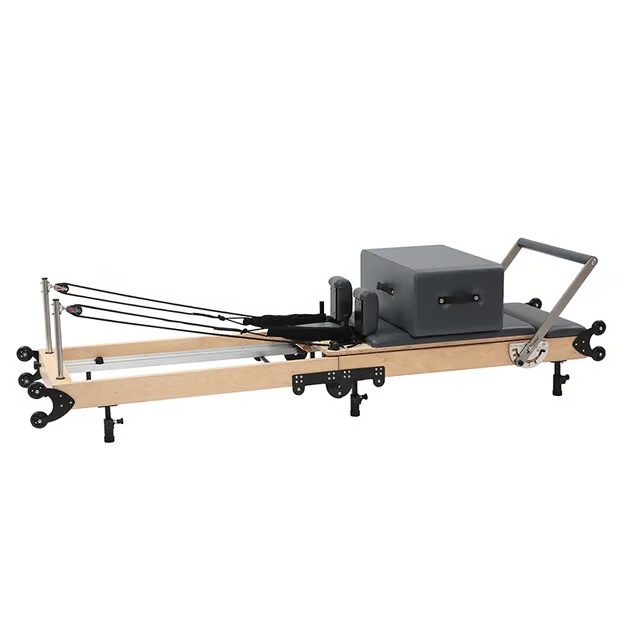

Pilates Luma Maple Foldable Reformer (Model:111)
Luma Foldable Reformer
Core Construction
Frame Material: High-grade North American maple
Finish: Sanded and polished 6 times, sealed with thick wood wax oil
Design Feature: Foldable base frame for easy transport and compact storage
Platform Height: 11"/13" (adjustable using star nut and gear lock)
Foot Leveling: Adjustable feet ensure ground contact for balance
Handling Warning: Do not clean wood with wet cloth; dry cloth only
Dimensions & Weight
Reformer Size: 249 cm × 61.5 cm × 27/33 cm (98” × 24” × 11”/13”)
Net Weight: 75 kg (165 lb)
Gross Weight: 105 kg (231 lb)
Shipping Size: 145 cm × 73 cm × 60 cm (57” × 29” × 24”)
Packaging: Durable plywood crate
Resistance & Spring System
Total Springs: 5
1 × Red – Heavy (60 lb)
2 × Blue – Medium (26 lb)
2 × Yellow – Light (19 lb)
Resistance Levels: 3-level gear bar adjustment system
Spring Origin: Imported from Japan (piano wire steel)
Spring Lifespan: 2 years or 3,000 hours (replace earlier if deformed or corroded)
Functional Elements
Track: Aviation-grade aluminum, thick and smooth with low-friction glide
Carriage System: High-precision wheel and track for silent movement
Headrest: Adjustable
Shoulder Rests: Insertable and secure with firm attachment
Foot bar: Multi-position adjustable; must support jump board if used
Jump board: Compatible; must always be used with handle bar support
Pulleys: Smooth-glide, adjustable tower columns with 3 stop positions
Ropes & Handles:
Climbing-grade ropes with silent loop straps
Dual loop handles with secure stitching
Folding Mechanism
Folding Steps:
Remove both side fenders, Hang spring to top gear, Adjust bar to final gear, Grip the handle and raise the unit vertically
Important Warning: Do not attempt folding without fender removal; may cause frame damage
Storage Position: Fold vertically; place on even ground and away from heavy activity.
Safety Standards
Keep 1-meter clearance on all sides when in use, Always attach at least one spring when not in use, Never use without supervision if unfamiliar with reformer movement, Check for loose screws, nuts, shoulder rests, and springs before each session.
Maintenance
Daily: Dust wipe track, check rope fray, inspect springs
Monthly: Tighten all screws, nuts, bolts, especially under carriage and headrest
Upholstery Care: Avoid sharp objects or jewelry while using; clean with a dry cloth only
Wood Maintenance: Avoid sun exposure and never use water-based cleaning
Tower Column: Lock securely using nut and ball-gear safety system
Warranty
Frame, Platform, Springs: 1 year
Wear Parts (ropes, straps, wheels): 6months
Upholstery: 90 days (material defect only – excludes scratches, stains, cuts)
Ideal For
Compact studios needing space-saving options, At-home Pilates enthusiasts seeking tower versatility, Multi-function setups with limited floor area, Traveling instructors or physiotherapy units.
Why the Luma Folding Reformer Stands Out
Combines a full tower + reformer in a foldable body, Premium maple + aviation alloy + Japanese springs, Studio-level functionality in a compact, mobile frame, Smart design, silent glide, and 3-level resistance system make it one of the best foldables available.
